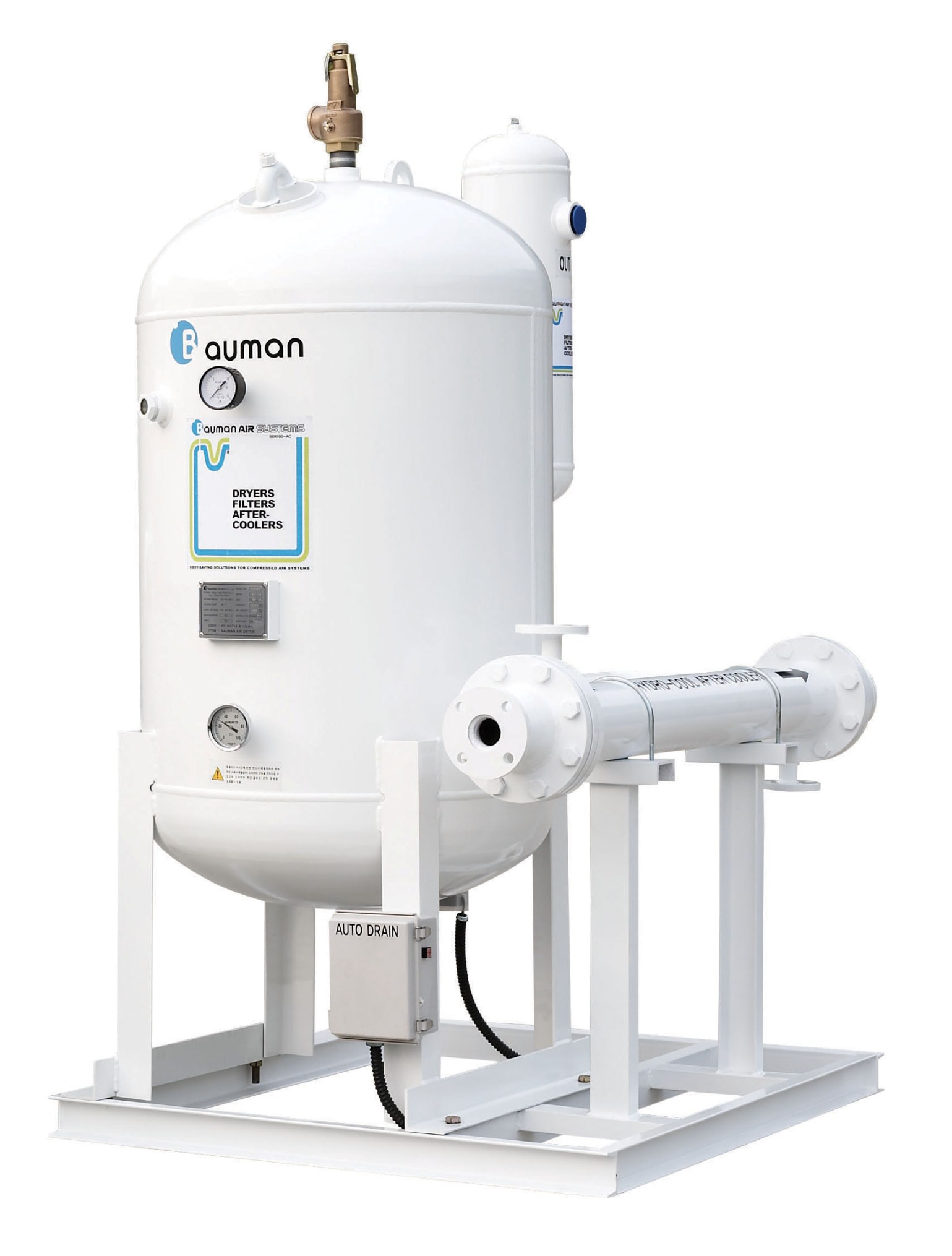

BDX Series

(air dryer+air receiver+water cooled+filter+auto drain all-in-one)

Model	Volume	Dimesion	Weight	In/Out	DOL.init.	Compressor	Consumption
		OD(§¶)¡ÁH  W¡ÁL¡ÁH	KG	A	KG	HP	KG
BDX100-HC	15	1200¡Á1200¡Á1778	360	50	300	100	238.9
BDX150-HC	21.6	1180¡Á1400¡Á1878	530	65F	480	150	350
BDX200-HC	30	1740¡Á1527¡Á1954	578	80F	765	200	477.8
BDX300-HC	43.3	2100¡Á2000¡Á1925	1235	100F	990	300	700
£ªBased on Inlet temperature 311T  £ªDesigned to withstand 9.9kg/cm2, more than 10kg/cm2 must be made to order  £ªBDX-HC Model£ºwater cooled, Air cooled cooler for DBX-AC model  £ªDesiccant consumption is based on an operating time of 6000 hours per year
