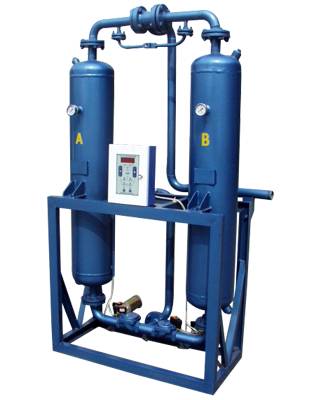

Rotorcomp(Shanghai) Heatless Absorption Regenerative Dryer

Model		LHCD-1.6L	LHCD-3.0L	LHCD-6.0L	LHCD-12L	LHCD-20L	LHCD-30L	LHCD-40L	LHCD-60L	LHCD-80L	LHCD-100L
Nominal Capacity(Nm³/min)		1.6	3	6	12	20	30	40	60	80	100
Inlet Outlet DN(mm)		25	32	40	50	65	80	100	125	150	150
Dimension (mm)	L	970	1150	1310	1550	1950	1950	2200	2400	2650	2930
	W	380	385	500	625	685	685	775	1000	1100	1200
	H	1230	1370	1830	1930	2180	2600	2570	2790	2980	3200
	In.H1	115	220	280	310	360	360	360	400	350	450
	Out.H2	1160	1270	1750	1830	2070	2490	2450	2650	2840	3050
	Ins.L1	930	1050	1210	1400	1800	1800	2050	2250	2500	2600
	Ins.W1	270	340	450	575	625	625	720	940	1030	1130
Voltage/Power		AC220V/50HZ/< 60W
Weight(KG)		250	310	605	1050	1580	1800	2520	3150	3980	4460
