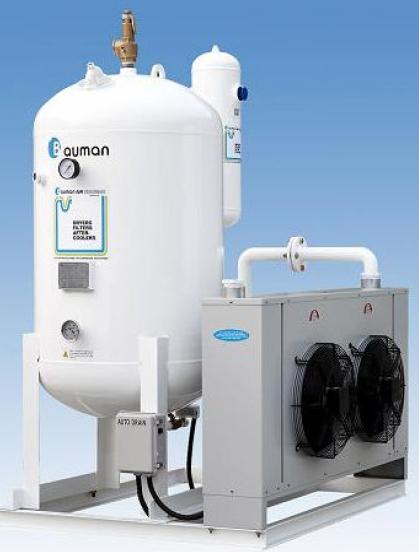

(air dryer+air receiver+air cooler+filter+auto drain all-in-one)

Model	Volume	Demision	Weight	In/Out	DOL.init.	Compressor	Consumption
BDX020	3.3	865¡Á750¡Á1855	161	25	95	15	53.7
BDX030	6	970¡Á575¡Á1861	203	25	155	22	93.1
BDX050	8.3	1170¡Á880¡Á1750	268	40	220	37	133.2
BDX100	15	1200¡Á1200¡Á1778	360	50	300	75	238.9
BDX150	21.6	1180¡Á1400¡Á1878	530	65F	480	110	350
BDX200	30	1740¡Á1527¡Á1954	578	80F	765	132	477.8
BDX300	43.3	2100¡Á2000¡Á1925	1235	100F	990	250	700
£ªBased on Inlet temperature 311T £ªDesigned to withstand 9.9kg/cm2, more than 10kg/cm2 must be made to order £ªBDX-HC Model£ºwater cooled, Air cooled cooler for DBX-AC model £ªDesiccant consumption is based on an operating time of 6000 hours per year
