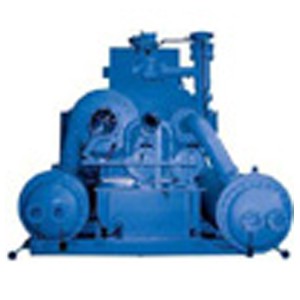

B Series Turbo compressor

B-Series Turbo Compressor are applied for hot air highly pressurized of the oil refining catalytic cracking equipment in petrochemical industry. The series of products are single-stage high-speed turbo air compressor, the medium temperature of inlet is 100 grade-250 grade, the high-pressurized rate is 1.1-1.5, the inlet volume is 40m3/min - 400m3/min. The impeller of the series of products use designs of three-dimensional flow new technologies, manufactured by the NC machine tool, select high-strength alloy steel materials. Chassis has whole and level-division two forms, the inlet with the adjustable door, fulfill automatic and manual control by motor executing part. Single sets of unit are composed of compressor, speed-up box, main oil pump, ecltric oil pump, oil cooler, oil filterand other auxiliary equipment, installed in a public base, offering as storage tank of lubricant station. The advantage of the series: compacted construction, light weight, easy lifting, small area covering, smooth operation, easy maintenance.
